Tool Dynamic TD 800
Special Balancing Machines
Main features •Measuring and compensation of unbalance on 1 and 2 planes •Correction of the unbalance by radial drilling, milling, balancing rings or balancing screws •Comfortable handling via touchscreen •Base made polymer concrete for highest measuring accuracy |
Your solution for big rotors up to diam. 800 mm
Based on the proven Tool Dynamic balancing technology the Tool Dynamic TD 800 allows balancing big rotors of all kind. Bearing rings, grinding wheels and turbine wheels. With hand tailored clamping adapters you can balance your rotors as easy and quick as usual. The safety hood of the TD 800 is segmented and opens to the side. Thus the rotor is accessible from above and heavy parts can be handled by a crane.

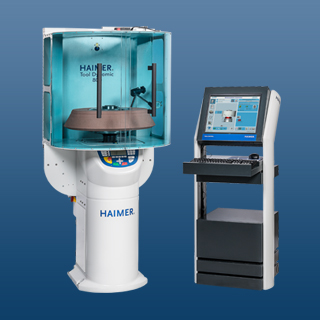

Picture shows TD 800 with optional runout measuring device.

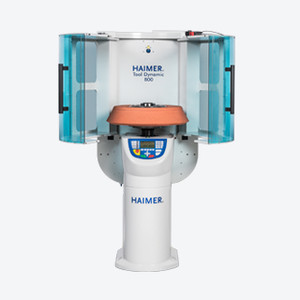

Tool Dynamic TD 800 safety hood •The safety hood is segmented and opens to the siede. Thus the rotor is accessible from above. Heavy parts can be handeled by a crane. |

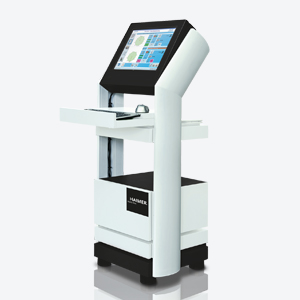

Tool Dynamic control terminal •High quality touchscreen with hardened glass surface for easiest control •Traditional input with keyboard and mouse possible •Drawer for balancing adapter and tools •Storing facility for printers |

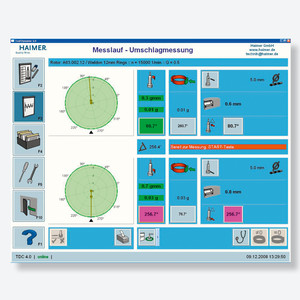

Tool Dynamic Software TDC 4.0 •New intellignet balancing software •User interface completely made up of graphics •Intuitive user guidance •Graphical help and assistant functions guides through all function processes |

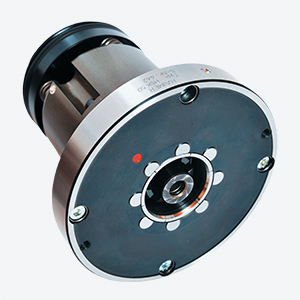

HAIMER balancing adapter with automatic clamping •μm precise clamping for highest measuring accuracy and repeatability •Easy and quickest changing due to compact design. A re-calibration of the machine is not neccessary |
| Equipment | |
 Base made of polymer concrete | Highest measuring accuracy due to heavy base |
 User interface | Integrated user interface for easy handling of the machine |
 Optical indexing help | Indication of the exact spindle angle position on display |
 Laser marking | Indicates the position of unbalance and correction with a laser |
 Print label | Print balancing result on label |
 Drilling radial | Balancing by drilling radially |
 Software for compensation with balancing rings | Balancing by rings or other movable weights |
 Index balancing | Compensation of measuring errors by index balancing (2 measuring runs, indexing angle 180°) |
 Balancing with spindle compensation | Quick and precise measuring of repetition parts (single measuring run) |
 Balancing in 1 plane | Measuring and compensation of unbalance in 1 plane (static) |
 Balancing in 2 planes | Measuring and compensation of unbalance in 2 planes (dynamic unbalance) |
 Fixed components | Enables balancing at predefined positions, e. g. with balancing screws |
 Automatic indexing | Turn the spindle on the selected angle position and simplifies exact positioning of spindle Tool Dynamic - Rack for accessories |
 Rack for accessories | Storage rack with two integrated drawers for balancing adapters and further accessories |
 Milling program | Milling program allows correction of unbalance via milling |
 Balancing software TDC 4.0 | New software with user-friendly graphical interface and touchscreen-control |
 Control terminal incl. touchscreen | Console for storage of touchscreen, keyboard, mouse, printer, and further accessories (only together with balancing software TDC 4.0) |
 Touchscreen | TFT monitor with touchscreen |
 2nd Laser (from top) | Second laser for laser marking from top |
 Deutsch/English/Français/Italiano/Español | Languages for user interface for internal display |
| Technical data | |
| Dimensions [mm] | 1500 x 1910 x 900 |
| Weight [kg] | 550 |
| Spindle speed [rpm] | 100 - 1100 |
| Measuring accuracy [gmm] | < 0,5 |
| Power requirements [V/Hz] | 230 / 50 - 60 |
| Power usage [kW] | 1,0 |
| Compressed air [bar] | 5-6 |
| Air comsumption [l/h] | 30 |
| Max. tool length [mm] | 750 |
| Max. tool diameter [mm] | 800 |
| Max. tool weight [kg] | 110 |
