- Product name： TD Comfort Plus
- Subordinate category：Mechanical Equipment
- Owned brand：Germany-HAIMER
Tool Dynamic TD Comfort Plus
Main features •Measuring and compensation of unbalance on 1 and 2 planes •Correction of the unbalance by radial drilling, milling, balancing rings or balancing screws •Comfortable handling via touchscreen •Base made polymer concrete for highest measuring accuracy |
Balancing machine to balance tool holders on 1 and 2 planes.
The Tool Dynamic TD Comfort Plus offers a maximum of usability and comfort. Using the TD Comfort Plus you will never loose your goal during the balancing progress. You would like to balance your tools efficiently, fast and without being an expert? Then feel free to choose Tool Dynamic TD Comfort Plus – optimized touchscreen usage, integrated PC, comfortable storages for your balancing accessories and a maximum of equipment make balancing fast, convenient and very easy.

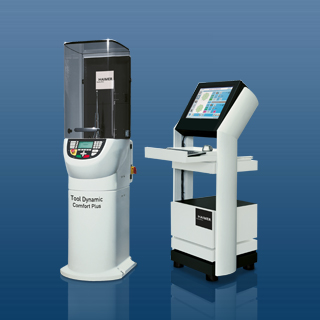

Picture shows special equipment: Safety hood type 3 for tools with lenghts up to 700 mm.
Tool Dynamic control terminal •High quality touchscreen with hardened glass surface for easiest control •Traditional input with keyboard and mouse possible •Drawer for balancing adapter and tools •Storing facility for printers |
Tool Dynamic Software TDC 4.0 •New intellignet balancing software •User interface completely made up of graphics •Intuitive user guidance •Graphical help and assistant functions guides through all function processes |
HAIMER balancing adapter with automatic clamping •μm precise clamping for highest measuring accuracy and repeatability •Easy and quickest changing due to compact design. A re-calibration of the machine is not neccessary |
| Equipment | |
 Base made of polymer concrete | Highest measuring accuracy due to heavy base |
 User interface | Integrated user interface for easy handling of the machine |
 Optical indexing help | Indication of the exact spindle angle position on display |
 Laser marking | Indicates the position of unbalance and correction with a laser |
 Print label | Print balancing result on label |
 Drilling radial | Balancing by drilling radially |
 Software for compensation with balancing rings | Balancing by rings or other movable weights |
 Index balancing | Compensation of measuring errors by index balancing (2 measuring runs, indexing angle 180°) |
 Balancing with spindle compensation | Quick and precise measuring of repetition parts (single measuring run) |
 Balancing in 1 plane | Measuring and compensation of unbalance in 1 plane (static) |
 Balancing in 2 planes | Measuring and compensation of unbalance in 2 planes (dynamic unbalance) |
 Fixed components | Enables balancing at predefined positions, e. g. with balancing screws |
 Automatic indexing | Turn the spindle on the selected angle position and simplifies exact positioning of spindle Tool Dynamic - Rack for accessories |
 Rack for accessories | Storage rack with two integrated drawers for balancing adapters and further accessories |
 Milling program | Milling program allows correction of unbalance via milling |
 Balancing software TDC 4.0 | New software with user-friendly graphical interface and touchscreen-control |
 Control terminal incl. touchscreen | Console for storage of touchscreen, keyboard, mouse, printer, and further accessories (only together with balancing software TDC 4.0) |
 Touchscreen | TFT monitor with touchscreen |
 Deutsch/English/Français/Italiano/Español | Languages for user interface for internal display |
| Technical data | |
| Dimensions [mm] | 1100 x 1500 x 820 |
| Weight [kg] | 450 |
| Spindle speed [rpm] | 300 - 1100 |
| Measuring accuracy [gmm] | < 0,5 |
| Power requirements [V/Hz] | 230 / 50 - 60 |
| Power usage [kW] | 0.4 |
| Compressed air [bar] | 6 |
| Max. tool length [mm] | 400 |
| Max. tool length (optional) [mm] | 700 |
| Max. tool diameter [mm] | 380 |
| Max. tool diameter (optional) [mm] | 425 |
| Max. tool weight [kg] | 30 |
