- Product name： TD Comfort
- Subordinate category：Mechanical Equipment
- Owned brand：Germany-HAIMER
Tool Dynamic TD Economic Plus
Main features •Measuring and compensation of unbalance on 1 and 2 planes •Correction of the unbalance by radial drilling, balancing rings or balancing screws •Comfortable handling via TFT-screen, keyboard and mouse •Base made polymer concrete for highest measuring accuracy |

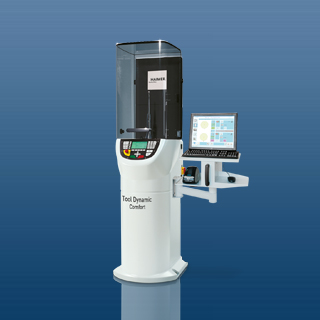

Picture shows special equipment: Safety hood type 3 for tools with lenghts up to 700 mm.
Balancing machine to balance tool holders on 1 and 2 planes.
If you want to balance frequently and keep the balancing time as short as possible, you should decide on the Tool Dynamic TD Comfort machine. It’s equipped with a PC, keyboard, mouse and monitor. The big screen enables you a fast input of tool data and all the comfort of a graphical user interface. In addition, the software of the machine offers the possibility to correct the unbalance with the help of a milling program what is very common in practice to correct the unbalance.

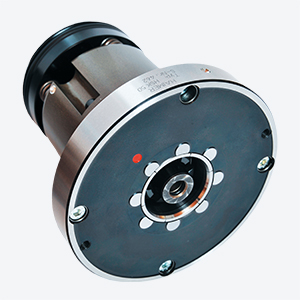

HAIMER balancing adapter with automatic clamping •μm precise clamping for highest measuring accuracy and repeatability •Easy and quickest changing due to compact design. A re-calibration of the machine is not neccessary |
| Equipment | |
 Base made of polymer concrete | Highest measuring accuracy due to heavy base |
 User interface | Integrated user interface for easy handling of the machine |
 Optical indexing help | Indication of the exact spindle angle position on display |
 Laser marking | Indicates the position of unbalance and correction with a laser |
 Print label | Print balancing result on label |
 Drilling radial | Balancing by drilling radially |
 Software for compensation with balancing rings | Balancing by rings or other movable weights |
 Index balancing | Compensation of measuring errors by index balancing (2 measuring runs, indexing angle 180°) |
 Balancing with spindle compensation | Quick and precise measuring of repetition parts (single measuring run) |
 Balancing in 1 plane | Measuring and compensation of unbalance in 1 plane (static) |
 Balancing in 2 planes | Measuring and compensation of unbalance in 2 planes (dynamic unbalance) |
 Fixed components | Enables balancing at predefined positions, e. g. with balancing screws |
 Automatic indexing | Turn the spindle on the selected angle position and simplifies exact positioning of spindle Tool Dynamic - Rack for accessories |
 Rack for accessories | Storage rack with two integrated drawers for balancing adapters and further accessories |
 Milling program | Milling program allows correction of unbalance via milling |
 Balancing software TDC 4.0 | New software with user-friendly graphical interface and touchscreen-control |
 Screen holder | Comfortable tray to place PC-screen and keyboard |
 TFT screen | Comfortable usage via keyboard, mouse). Only together with Balancing software TDC 4.0 |
 Deutsch/English/Français/Italiano/Español | Languages for user interface for internal display |
| Technical data | |
| Dimensions [mm] | 1100 x 1500 x 820 |
| Weight [kg] | 450 |
| Spindle speed [rpm] | 300 - 1100 |
| Measuring accuracy [gmm] | < 0,5 |
| Power requirements [V/Hz] | 230 / 50 - 60 |
| Power usage [kW] | 0.4 |
| Compressed air [bar] | 6 |
| Max. tool length [mm] | 400 |
| Max. tool length (optional) [mm] | 700 |
| Max. tool diameter [mm] | 380 |
| Max. tool diameter (optional) [mm] | 425 |
| Max. tool weight [kg] | 30 |
