Tool Dynamic TD 1002
Main features •Measuring and compensation of unbalance on 1 plane •Correction of the unbalance by radial drilling or balancing rings •Menu-based handling via integrated user interface and display •Vibration optimized base |

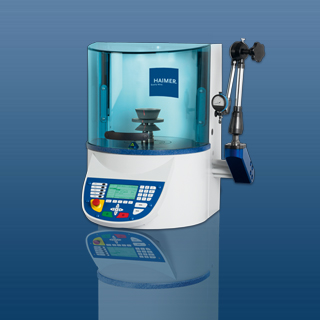

Picture shows balancing machine TD 1002 with optional runout measuring device.
The Tool Dynamic TD 1002 is your start into the modular balancing system of the Tool Dynamic series. Designed as a table and complementary machine, it is the ideal solution for mould makers, small batch lots, single applications and standard chucks. The Tool Dynamic TD 1002 measures and compensates the unbalance in one plane (static). Therefore it is perfect for balancing short tool holders and tools because of the couple unbalance being very low. The device is operated via the integrated keyboard and screen.
Balancing machine to balance tool holders on 1 plane.
TD 1002: Balancing of grinding wheels
1. TD 1002 optimised for balancing grinding wheels
2. Clamping by adapter with automatic clamping system for grinding arbors (HSK or SK)
3. Clamping by balancing arbor for balancing of each grinding wheel separatly
4.Optional runout measuring device for an easy and reliable check of your grinding wheel's runout and axial runout.
| Equipment | |
 Vibration optimized base | Adapted table for optimized base |
 User interface | Integrated user interface for easy handling of the machine |
 Optical indexing help | Indication of the exact spindle angle position on display |
 Laser marking | Indicates the position of unbalance and correction with a laser |
 Drilling radial | Balancing by drilling radially |
 Software for compensation with balancing rings | Balancing by rings or other movable weights |
 Index balancing | Compensation of measuring errors by index balancing (2 measuring runs, indexing angle 180°) |
 Balancing with spindle compensation | Quick and precise measuring of repetition parts (single measuring run) |
 Balancing in 1 plane | Measuring and compensation of unbalance in 1 plane (static) |
 Deutsch/English/Français/Italiano/Español | Languages for user interface for internal display |
| Technical data | |
| Dimensions [mm] | 500 x 680 x 820 |
| Weight [kg] | 200 |
| Spindle speed [rpm] | 300 - 1100 |
| Measuring accuracy [gmm] | < 1,0 |
| Power requirements [V/Hz] | 230 / 50 - 60 |
| Power usage [kW] | 0.4 |
| Compressed air [bar] | 6 |
| Max. tool length [mm] | 360 |
| Max. tool diameter [mm] | 340 |
| Max. tool weight [kg] | 15 |
