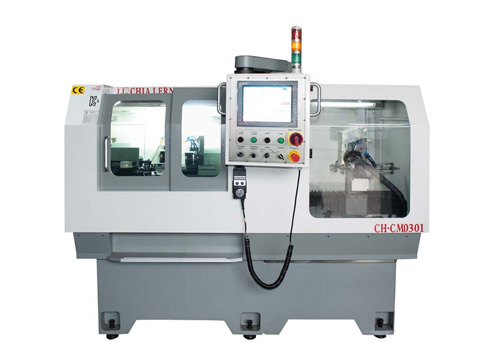

Chia Lern Multi-Purpose Profile Grinder
Machine body
1.X-Y servo motor control (2 axis homing)
Maximum stroke of X.Y axis: 200mm/X.Y. axis movement speed: 120mm/SEC
X.Y. axis minimum setting unit: 0.001 mm/X.Y. axis SERVO MOTOR: YASKAWA 900W SERVO MOTOR
2.Upper material length: 50~100 mm (automatic feeding) 30~150 mm (manual feeding)
3.The clamping shank diameter: 3 ~ 12 Ø Ø (automatic into the material)
4.Checkerboard feeding device: a-b servo motor control
4-1.Load Ø 4 mm & Ø can load artifacts 6 mm - 400 PCS
5.Tolerance: below 0.005 mm
6.Power demand: 3 Φ AC220V (380 v), 60 hz, 8.8 KW
Basic configuration list
1.Size of grinding wheel: 100~175mm
2.Grinding wheel shaft motor: KUANG MAOO horizontal motor 2HP 4P 1.5KW sand wheel shaft: Max4500rpm
3. Workpiece shaft Motor: TROY brushless DC Motor: b10990-01y workpiece axis: Max1500rpm
4. Controller: microfrontal utc-600v
5. Servo motor and servo driver: YASKAWA 900W.400W.100W
6. Cylinder clip form: SCHAUBLIN TYPE W20(UP)
7. Air pressure component: FESTO UNITS (electromagnetic valve. Three-point assembly. Pneumatic cylinder)
8.Precision ball screw: NSK (PSS2505N1D0599)
9. The toolbox (1 group) and the water tank (1) have a size of 1000 wide 500 and 520mm
10. The machine does not include the surrounding cooling filter system and oil mist filtration equipment.
* the total width of the machine is 2160mm and the total width of 1635mm is 1850mm and weighs about 1700kg
