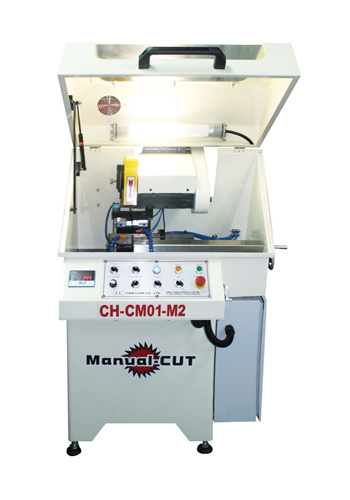

- Product name：CH-CM01-M2
- Subordinate category：Mechanical Equipment
- Owned brand：Taiwan - CHIA LERN
Semi-Manual cut off machine for Tungsten carbide Bar
Function description:
1.applies to cut off the diameter Ø1.4 to 40 mm, length 400 mm of round bar stock
2. Especially suitable for cutting off operation of tungsten carbide rod cutting machine
3. Simple operation interface can increase the efficiency of user production
4. When changing the grinding wheel, the automatic power failure measures will be used to ensure the safety of the operator
5. Cutting speed grinding wheel upper and lower servo motor control
6. Adjustable pressure position can be used to cut off the milling cutter
7. Cutting length tolerance: +-0.05mm
8. The machine is accompanied by a hole connecting the fan of oil mist
Standard equipment:
1. Diamond grinding wheel saw blade (1pc) : R91279 1mm OD 200mm IH 19.05mm
2. Grinding wheel cut motor Europe original import: 4P 3HP 50/30/400 B3
3. Σ - 100 w Σ Ⅴ drives - Ⅴ servo motor of 100 w (cutting speed control)
4. Pt68-3 LED length display with magnetic ruler
5. Control system: utc-c 2P (utc-mini)/handwheel: hdw-aa
6. The flying stable air pressure component (cylinder/solenoid valve...)
7. Screw HIWIN r14-4c1 -FSB- 115-165-05
8. Cooling water tank (1 unit)/toolbox (1 Set)
9. The quotation is not oil-mist fan or cooling water filtration system
* the total height of the machine is 1090mm and the total width of 940mm is 1360mm and weighs about 340 kg
