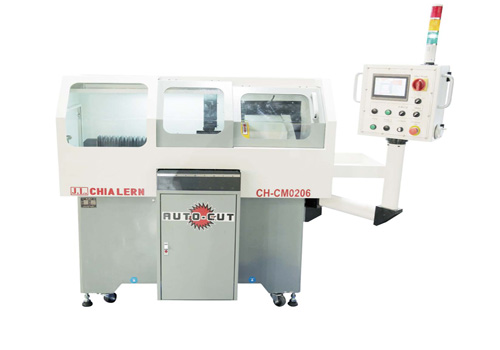

Double servo automatic Carbide bar cut off machine

Function description:

1. Ø applied to cut off the diameter 1.5 to 21 mm, length 400 mm bar

2. Two pieces can be made at one time and two are cut off

3. It is suitable for cutting off materials such as tungsten steel or HSS

4. Touch screen and simple program setting to increase user productivity

5. The program automatically calculates the function, and can be automatically cut off after processing stops to save power

6. Automatic power failure to protect user safety when replacing grinding wheel saw blade

7. The CESH automatic lubricator goes with the dustproof sleeve to automatically lubricate the lubricating oil into the screw parts to avoid the tungsten steel dust intrusion

8. The machine is equipped with lighting and reserved for connecting oil mist fan holes

9. The three stages of cutting speed can be controlled by the servo motor

10. Users can download and update the latest version of the software at their own time

11.V groove & screw support can be adjusted to ensure the vertical degree of machining plane

12. Cutting length tolerance: +-0.05mm

Standard equipment:

1. Diamond grinding wheel saw blade (1pc) : R93634 Thickness 1.2mm OD 200mm IH 19.05mm

2. Grinding wheel cut motor Europe original loading 4P 5.5HP IMB3 IP55

3. Σ - 100 w Σ Ⅴ drives - Ⅴ servo motor of 100 w (cutting length control)

4. Σ - 400 w Σ Ⅴ drives - Ⅴ servo motor of 400 w (cutting speed control) + VGM reducer (control saw blade up and down)

MF60XL1-4 - K - 14-50

5. Control system: motion controller MICRO (utc-400v +) conversational interface/UT -760 7-inch color touch control panel/hand wheel

LGT - 201-100

6. Festo air pressure unit and component (eight solenoid solenoid valve/pressure pressure/three-point combination/pneumatic cylinder...)

7. THK kr3310a-600l (linear module) (control pushing and cutting length)

8. Water tank & cooling oil (liquid) pump (1 unit)Size L500 W 500 H520 (mm)/toolbox (1 Set)

9. The quotation does not include the oil mist exhaust fan & cooling oil (liquid) filtration system

* the total width of the machine is 2000mm and the total height of 1100mm is 1900mm and weighs about 780kg
