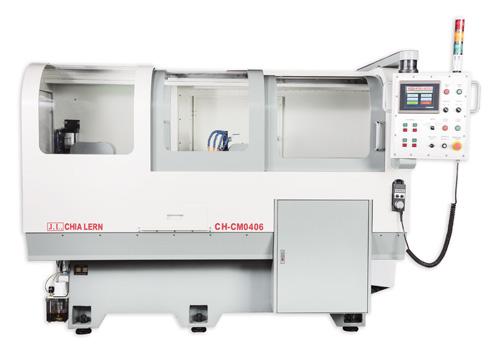

Smart Rod Cutting & Chamfering machine

The purpose is as follows:

 1. The container diameter Ø 2 to 25 mm/Ø length minimum 100 up to 600 mm

2. Cut length 30 to 300 mm

3. The chamfer Angle: 60 ~ 135 ˚ adjustable (according to the grinding wheel Angle)

4. Used to cut off tungsten carbide rod and chamfer

5. Touch screen and simple user interface can increase productivity and save manpower

6. Automatic calculation function also has incoming material screening and grinding wheel wear compensation function

7. When changing grinding wheel, the machine can automatically cut off power to protect the user's safety

8. The machine is equipped with lighting and reserved for the hole of the fan

9. The spindle of the workpiece is the same as that of the grinding wheel

10. Cutting length tolerance: +-0.05mm

Standard equipment:

1. Cut off the grinding wheel (1 PC): 310 mm ODX 2TX 5X xih31.75mm

2. The chamfering grinding wheel (2 PC) : mmDX10TX45 240 ˚ X31.75 IH D200 af must not be

3. The discharge grip: 2.6 ~ 8 x1 Ø; Ø 6 ~ 12 x1; Ø 12 ~ 17 x1; Ø 17 ~ 21.5 X1; Ø 21.5 ~ 25 x1

4. Cut off the grinding wheel motor: 2HP 4P 220/380v

5. Workpiece spindle B&C servomotor 750W (sgmjv-08aaa61) drive (sgdv-2r8a01b)

6. X, Y, A, Z axis servo motor 400W (sgmjv-04aaa61) drive (sgdv-2r8a01b)

7. Motion controller: MICRO (utc-600v)

8. Festo air pressure component (valve island VTUG- 14-msdr - s8-b1t-25v20-q10l-ul - g18s-2e8m + MA2) X 2

9. HIWIN uniaxial robot A Axis (kk10020c-680ea1-f0)

         Feed module x. Y Axis (QEH25CA2R400Z0H)

         Ball screw Z Axis (r14-4c1 -FSB- 115-165-0.05) x 1 combination

         Linear module Z Axis (hgl-15ca1r140zah (E=10/10)

10. 5C Collet: OD 12 mm x 2; OD 6 mm x 2

11. The quotation does not include the oil mist exhaust fan and the cooling water tank

* the total width of the machine is 2440mm and the total width of 1400 mm is about 2055kg
